Steam drives 90% of the world’s power plants. Notably, people use three steam types: wet steam, dry steam, and superheated steam. There is a huge Difference Between Wet Dry and Superheated Steam. Each type shows unique heat, pressure, and moisture traits. Moreover, wet steam holds tiny water droplets that cut efficiency. Dry steam offers nearly pure vapor for better heat transfer. Superheated steam heats above boiling point to reach over 500 °C. This extra heat can boost turbine performance by 15%.
In addition, choosing the right steam saves fuel and cuts wear on machines. Thus, engineers and students gain clear insight into steam choices.

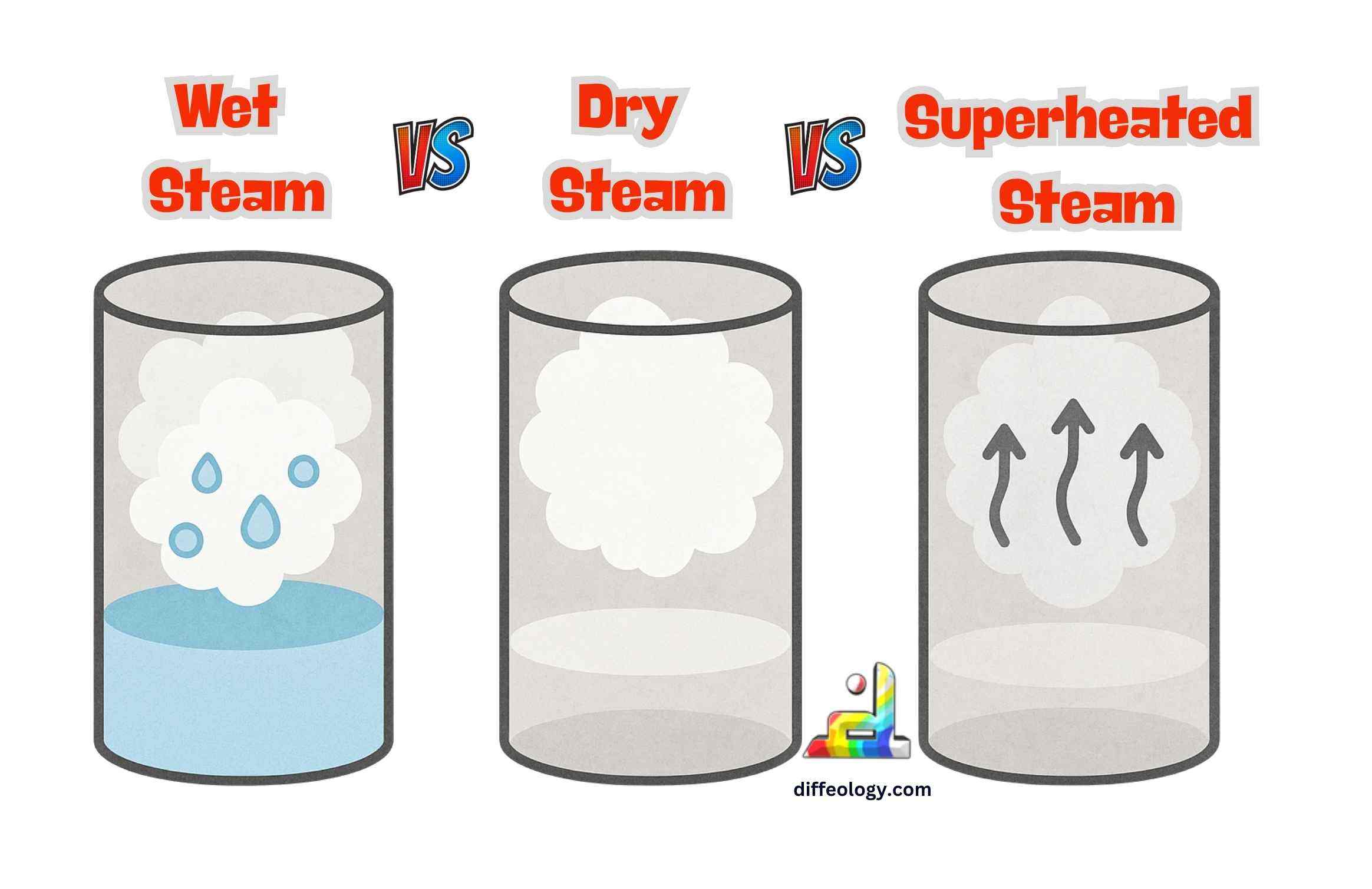

Main Difference Between Wet Dry and Superheated Steam
Wet steam carries water droplets that lower its heat power. Meanwhile, dry steam lacks droplets and holds full latent heat. Superheated steam stays pure vapor above its saturation temperature. Consequently, it carries both latent and extra sensible heat. Wet steam suits simple heating and humidifying tasks. Dry steam fits small turbines and food processing. Superheated steam works best in large turbines and high-temp chemical reactors. Each type links moisture and temperature to its use and efficiency.
Wet Steam Vs. Dry Steam Vs. Superheated Steam

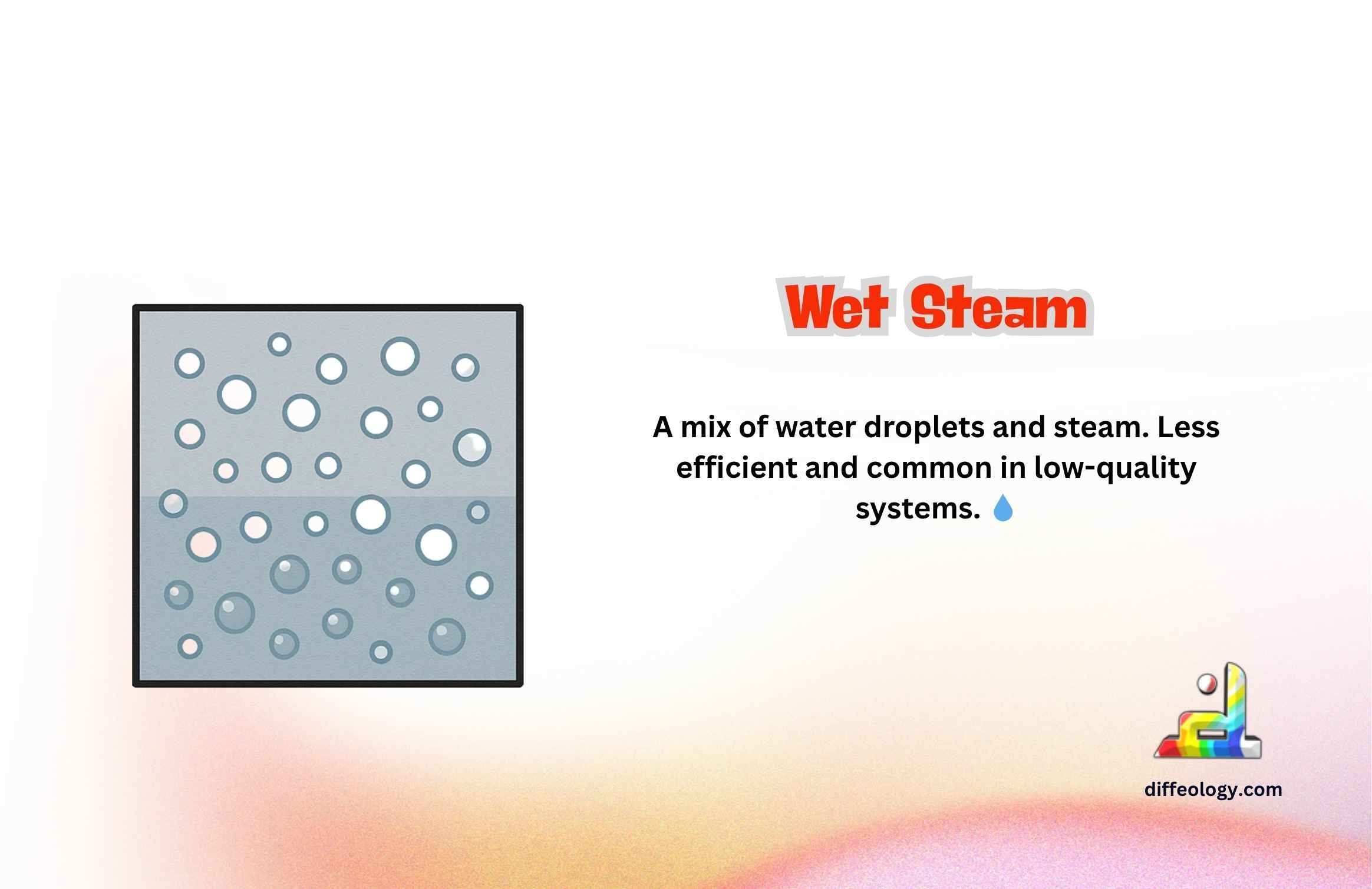

What Is Wet Steam
Wet steam mixes vapor and tiny liquid droplets. In a typical boiler, steam dryness runs between 95% and 97%. This means 3–5% of its mass stays as water. Such droplets cut the steam’s latent heat. Besides, they can erode pipes over time.
People use wet steam in heating systems and humidifiers. It condenses fast on cool surfaces, releasing heat quickly. However, designers add separators to catch moisture. Thus, wet steam can still heat well without wet slugs that harm machines.
Read Also: Difference Between MAPP Gas and Propane
Meanwhile, wet steam finds use in older boilers and small engines. It’s simple setup makes it easy to produce. Still, engineers must drain condensate to avoid water hammer. Regular steam trap checks help keep systems safe and efficient.

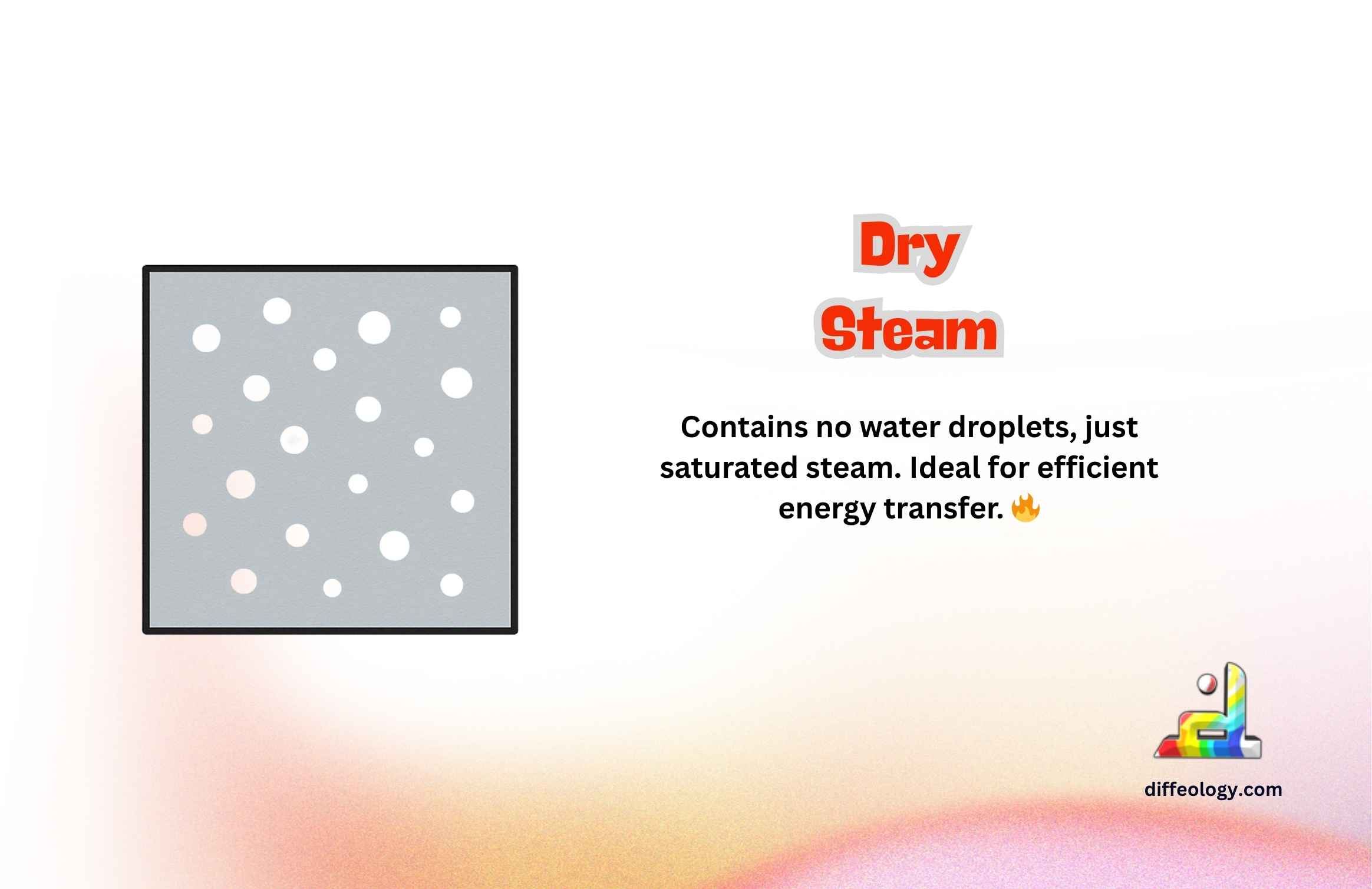

What is Dry Stream
Dry steam carries no water droplets. It sits at its boiling point and forms a single vapor phase. It has a dryness fraction of 1.00. For example, at 1 bar it reaches 100 °C. It stores about 2 257 kJ/kg of latent heat. Steam tables list its pressure, temperature, and enthalpy. Designers treat it as a pure gas in flow models. Moreover, it proves more efficient than wet steam.
Read Also: Difference Between Hydrophilic and Hydrophobic
Engineers use dry steam in many machines. Power stations drive small turbines with it. Food plants rely on it for sterilization. It condenses on surfaces and releases latent heat fast. Dry steam gives up to 2 260 kJ/kg of heat energy. Temperatures range from 120 °C to 215 °C at 2–20 bar pressure. Manufacturers add dryers to boost its quality. They favor it for its steady and strong heat output.
What Is Superheated Steam
Superheated steam stays at zero moisture and heats above its boiling point. For example, at 1 bar it can reach 250 °C or more. This heat boost adds extra energy per kilogram of steam. As a result, turbines generate more work and run smoother.
In power plants, superheated steam drives massive turbines. It stays vapor through big pressure drops, avoiding blade damage from droplets. Additionally, it flows like a gas, which eases pipe design. Yet, its low heat transfer rate makes it poor for direct heating. Thus, engineers reserve it for work cycles and chemical reactions needing high heat.
Read Also: Difference Between Atomic Mass Unit and Atomic Mass
Moreover, plants add reheaters to bring steam back above saturation after partial expansion. This step keeps steam dry through all turbine stages. As a result, systems run longer and require less maintenance.
Comparison Table “Wet Steam Vs. Dry Steam Vs. Superheated Steam”
| Moisture Content | 3–5% liquid droplets | 0%–1% droplets | 0% droplets |
| Temperature at 1 bar | 100 °C (saturation) | 100 °C (saturation) | 150–300 °C (above saturation) |
| Dryness Fraction | 0.95–0.97 | 0.99–1.00 | 1.00 |
| Heat Transfer Coefficient | High (latent heat) | High (latent heat) | Low (gas-like behavior) |
| Energy Content | Lower due to sensible heat | Full latent heat | Latent plus extra sensible heat |
| Common Applications | Heating, humidifying | Sterilization, small turbines | Power turbines, heavy machinery, reactors |
| Equipment Requirements | Separators, traps | Dryers, lubricators | Superheaters, insulation, expansion joints |
Detailed Difference Between Wet Dry and Superheated Steam
Get to know the Difference Between Wet Vs. Dry Vs. Superheated Steam in Detail.
1. Moisture Content
Wet steam holds 3–5% liquid droplets. These droplets lower the energy you get when steam condenses. Consequently, people fit separators to catch moisture before use.
Dry steam reaches a 0.99–1.00 dryness fraction. It has almost no droplets and transfers heat well. Meanwhile, superheated steam always stays fully dry. It resists condensation across wide pressure drops.
2. Energy Content
Wet steam splits its energy between latent and sensible heat. Water droplets only carry sensible heat. Thus, a boiler sending 97% dry steam to a process delivers 3% less energy than ideal dry steam.
Dry steam holds full latent heat. Superheated steam adds extra sensible heat above saturation. This extra heat may add 20% to total enthalpy at some pressures. As a result, turbines and engines boost thermal efficiency by up to 5%.
3. Temperature and Pressure
Wet and dry steam sit at the same saturation point for their pressure. For instance, at 1 bar they both reach 100 °C. Superheated steam heats above saturation at constant pressure. In many plants it climbs to 350–550 °C.
When steam expands, wet steam may condense and cause water hammer. In contrast, dry and superheated steam stays vapor longer. Thus, superheated steam travels safely through long pipe runs and turbine stages.
4. Phase Composition
Wet steam forms a two-phase mix of liquid and vapor. The vapor quality ranges below 1.00, meaning some liquid remains. You must model flow carefully to avoid slugging.
Dry steam moves as one phase, nearly all vapor. Superheated steam remains single-phase even at high heat. This trait simplifies flow design in nozzles and blades.
5. Heat Transfer Efficiency
Wet steam condenses fast and gives high latent heat release. However, droplets can cause hot spots and uneven heating. Thus, systems need good condensate drainage.
Dry steam carries uniform latent heat. Superheated steam acts like air and shows a low heat transfer coefficient. As a result, you need bigger surface areas to match saturated steam’s heating.
6. Common Applications
People use wet steam in space heating and humidifiers. Its quick condensation suits surface heating. Meanwhile, dry steam powers small turbines and sterilizes equipment.
Superheated steam spins large turbines in power stations. It also drives heavy machinery and fuels some chemical reactions. Its high temperature helps in processes that need extra heat.
7. Safety and Handling
Wet steam can corrode pipes with its droplets. Devices like traps and separators keep equipment safe. Otherwise, a water hammer can strike and damage parts.
Dry and superheated steam demands tight temperature control. Engineers add insulation and expansion joints to handle hot piping. They also fit high-temp gaskets to stop leaks and guard workers from burns.
Key Difference Between Wet Dry and Superheated Steam
Here are the key points showing the Difference Between Wet Vs. Dry Vs. Superheated Steam.
- Moisture Content: Wet steam carries water that cuts heat.
- Dryness Fraction: Dry steam hits 99–1.00, meaning almost no liquid.
- Extra Heat: Superheated steam adds up to 20% more energy.
- Temperature Range: Wet and dry steam stay at saturation. Superheated goes above 50–200 °C.
- Energy Split: Wet steam shares energy; dry steam gives full latent heat.
- Heat Transfer Rate: Superheated steam matches air and needs larger surfaces.
- Pressure-Temp Link: Saturated steam ties temperature to pressure. Superheated does not.
- Turbine Wear: Droplets in wet steam erode blades. Superheated steam protects them.
- Corrosion Risk: Wet steam’s water can rust pipes. Dry steam reduces that risk.
- Control Ease: Dry and superheated steam lets you set precise temperatures.
- System Parts: Wet steam needs separators; superheated needs superheaters.
- Heating Tasks: Wet and dry steam excel at heating surfaces.
- Power Tasks: Superheated steam drives big turbines for higher efficiency.
- Safety Measures: Superheated steam needs extra insulation and strong gaskets.
FAQs: Wet Vs. Dry Vs. Superheated Steam
Conclusion
The type of steam used in a system—wet, dry, or superheated—has a big impact on how efficiently energy is transferred, how much equipment wears out, and what kind of tasks the steam is best suited for. Wet steam has some water droplets and is good for basic heating, but can cause corrosion. Dry steam is almost all vapor and works well for sterilization and moderate energy needs. Superheated steam is the hottest and most powerful, best for turbines and high-energy industrial uses, though it needs careful handling. Knowing the Difference Between Wet Dry and Superheated Steam helps in choosing the right steam for safety, performance, and energy savings.
